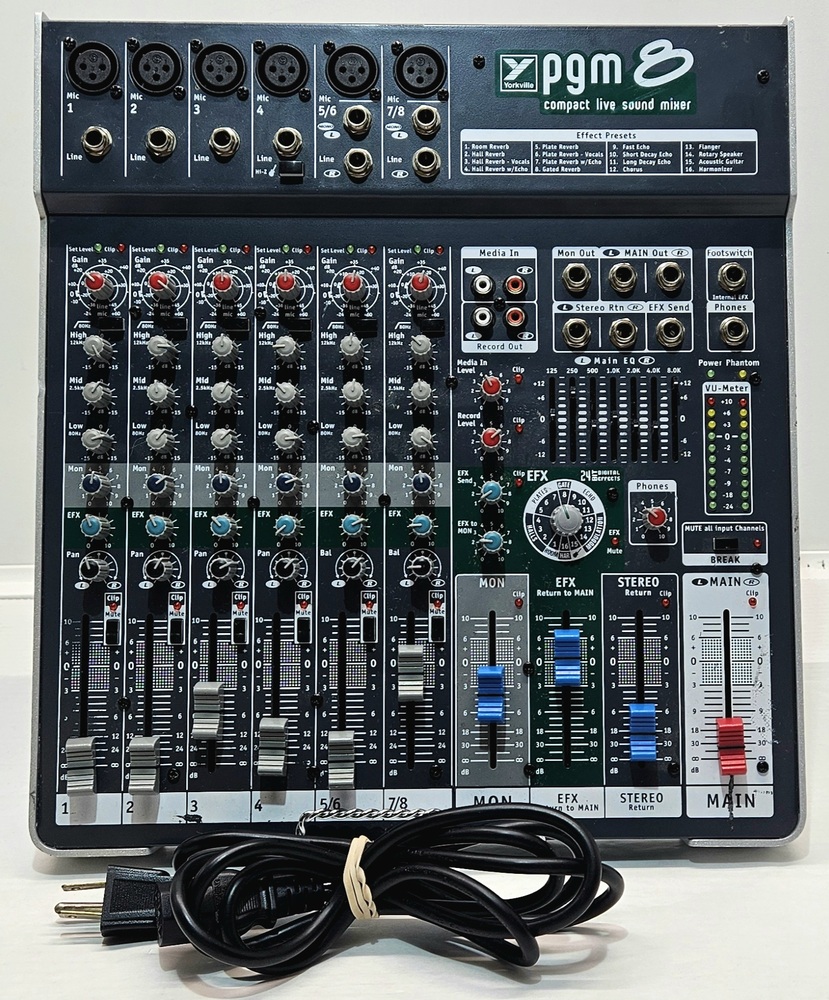

The Yorkville PGM8 is an ultra-compact, professional mixer offering essential features such as high-quality 60mm faders, a fully-featured input channel design, and 24-bit digital effects.
Specifications
Number of Channels: 8
Mono Channel EQ: 3-band
Pan/Balance Controls: 4/2
Channel Overload Protection: Yes
Inputs: XLR (bal)6, 1/4" 6. RCA 1 stereo pair
Phantom Power: 48 volt + LED indicator
VU Meters: 2 x 10 Segment LEDs
Headphone Monitor Features: Yes
Internal Effects: 24 bit stereo 16 effects
Effects Sends: 2 (1 internal, 1 external)
Effects Returns: Main and Monitor
Reverb / Effects Footswitch: yes
Record Outputs: 1 stereo pair
Signal to Noise Ratio (dB): Greater Than -100dB
Frequency Response (all EQ Flat,+/-2dB): 20Hz-20KHz
THD (Main out w/ -10dB input): Less Than 0.05%
Typical crosstalk -1 kHz (dB): Greater Than -60dB
CMRR @ 60Hz (min/typ): 55dB/65dB
Included
- Yorkville Sound PGM8 Compact Mixer
- Power cord

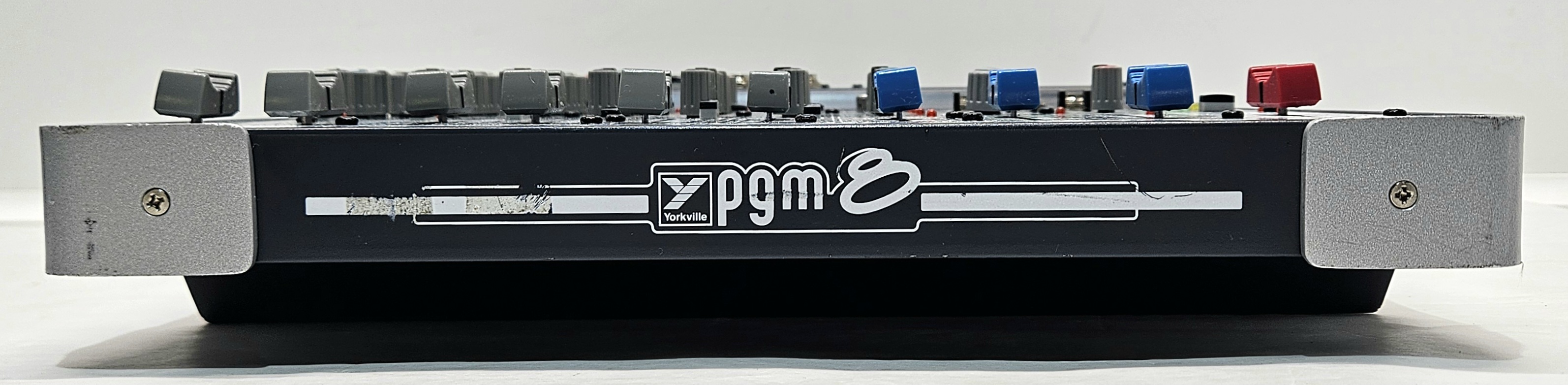

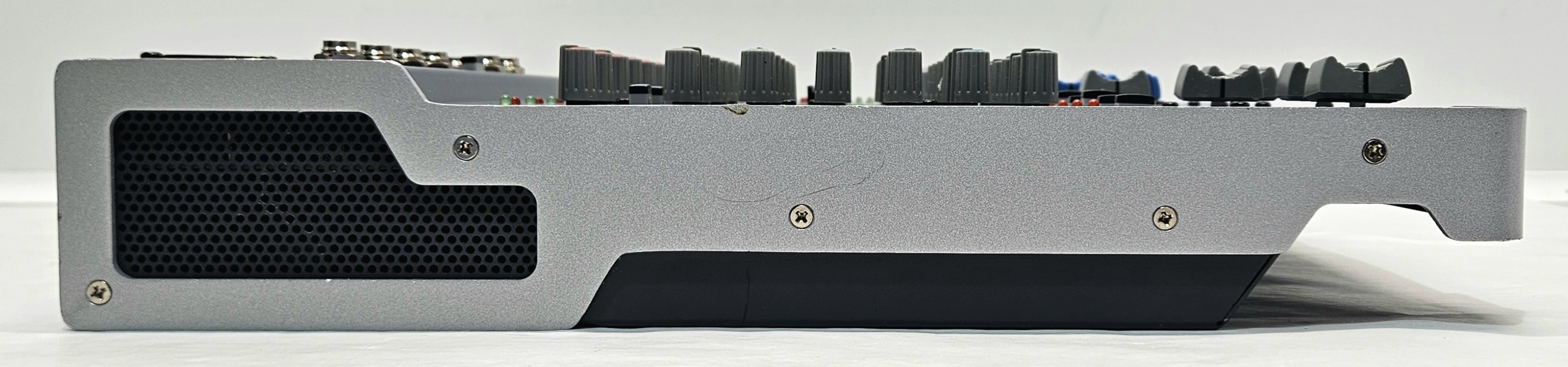

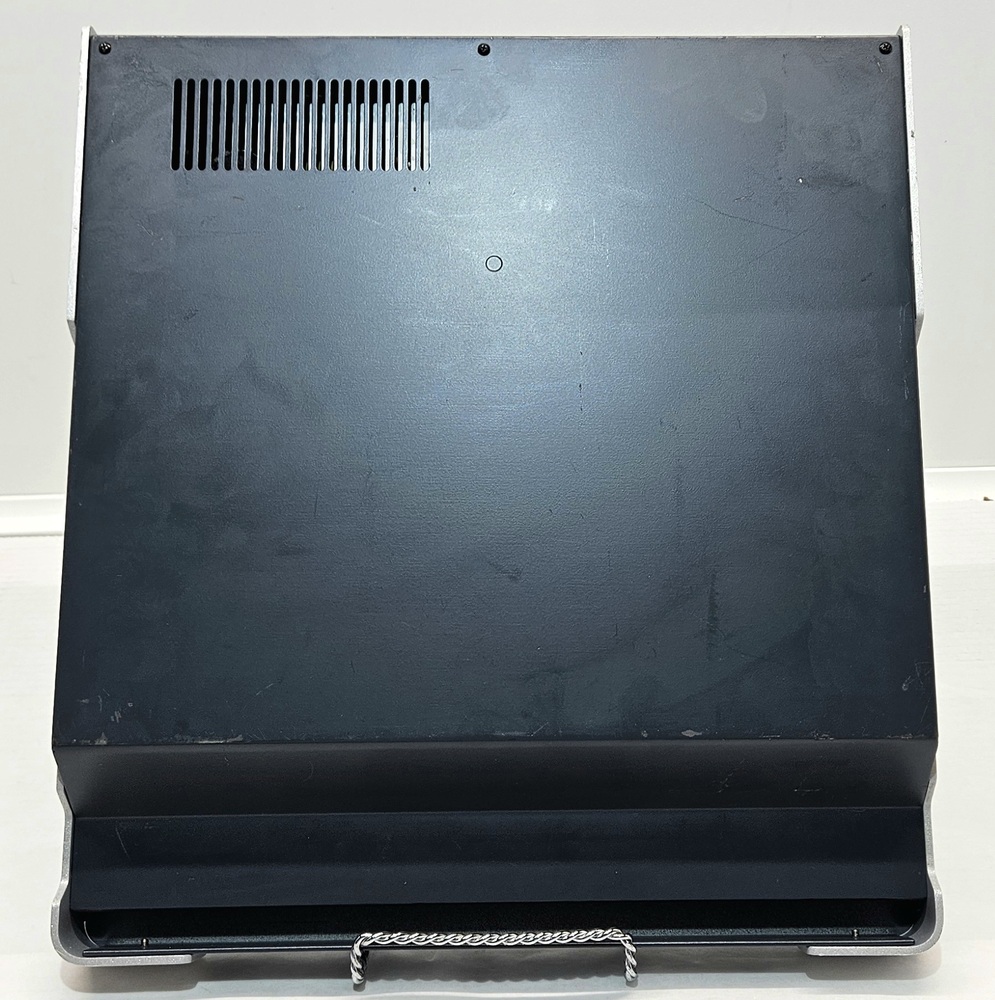

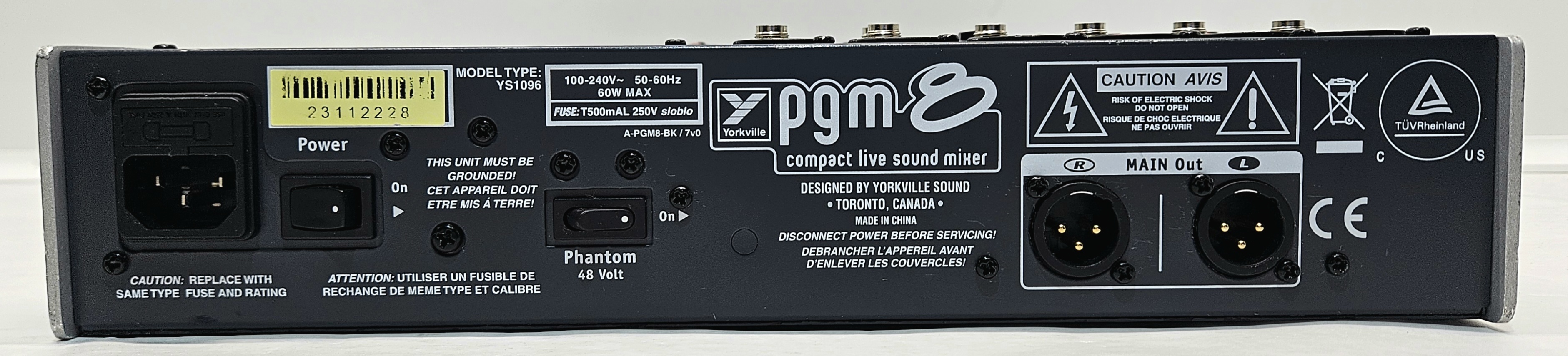

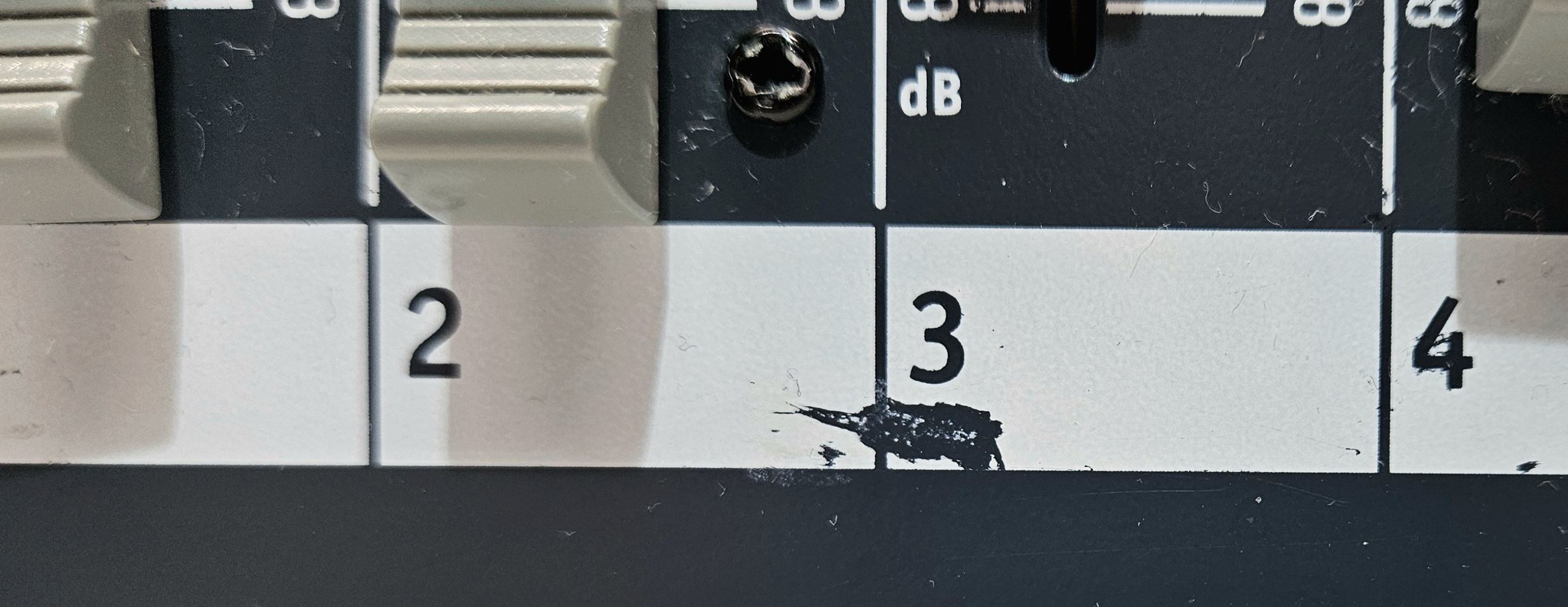

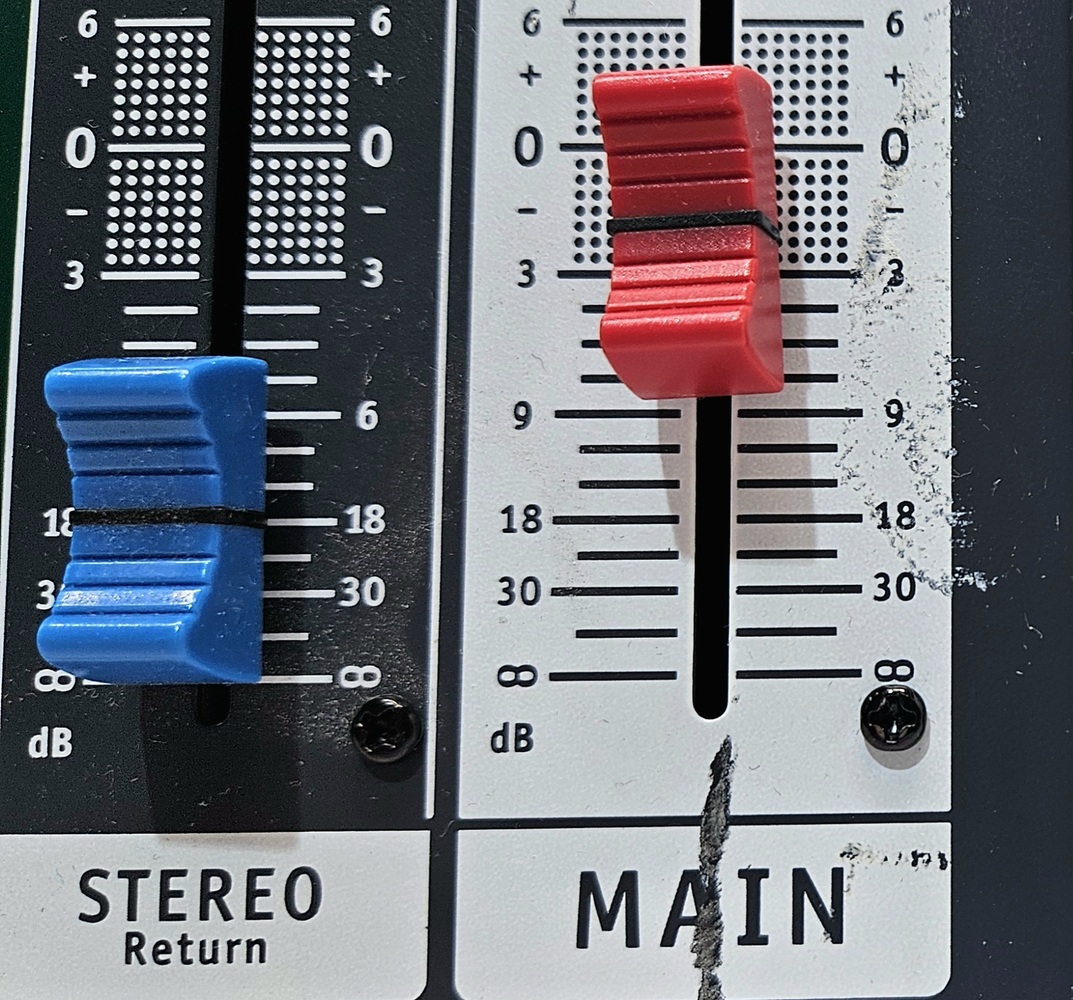

**PLEASE NOTE: This mixer is in good pre-used condition and in good working order. There are scratches and scuffs from handling and use but does not affect the item. Please see photo and details.**
